Docker ULCL Deployment

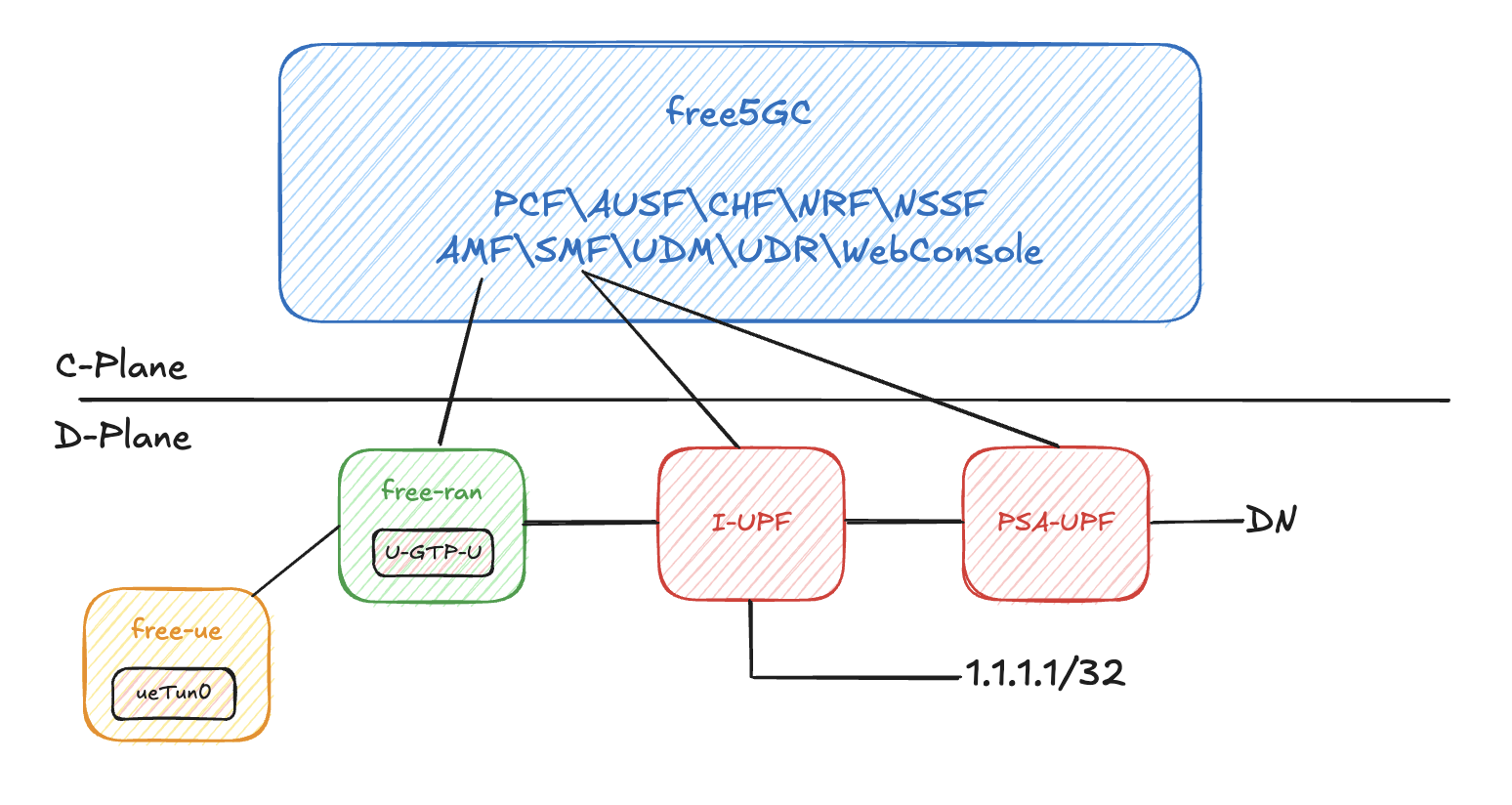

Architecture Overview

In ULCL, we define a specific traffic route for the destination 1.1.1.1/32. All traffic destined for 1.1.1.1/32 will be routed through the path gNB - I-UPF - DN. Other traffic will be routed through gNB - I-UPF - PSA-UPF - DN.

Here is the deployment of ULCL version:

A. Prerequisites

• Docker:

  • Install

    sudo apt update
    sudo apt install apt-transport-https ca-certificates curl software-properties-common
    curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
    sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable"
    sudo apt update
    sudo apt install docker-ce
    sudo systemctl start docker
    sudo docker --version


  • Docker group (avoid sudo problem)

    sudo groupadd docker
    sudo usermod -aG docker $USER
    newgrp docker


• gtp5g

  • Packages

    sudo apt -y update
    sudo apt -y install git gcc g++ cmake autoconf libtool pkg-config libmnl-dev libyaml-dev


  • Clone, Build and Install

    git clone https://github.com/free5gc/gtp5g
    cd gtp5g
    make
    sudo make install


B. (Optional) Build free-ran-ue Image

If you want to build the image from source code, you need to run this step; otherwise, the compose file will pull the image from docker hub with the latest tag. You can also modify the tag in the compose file for specified version.

• Clone

  git clone https://github.com/free-ran-ue/fru-compose.git


• Clone the source code and put it under fru-compose directory

  cd fru-compose
  git clone https://github.com/free-ran-ue/free-ran-ue


• Build image under fru-compose directory locally

  make


  After building, use docker images cli to check image. The image will be named with alonza0314/free-ran-ue:latest.

C. Start ULCL Compose

Clone the compose repo:

git clone https://github.com/free-ran-ue/fru-compose

Start the compose:

cd fru-compose
docker compose -f docker-compose-ulcl.yaml up

For the specific ue routes, please configure at fru-compose/config/ULCL/uerouting.yaml.

In default, there is a specific path for destination 1.1.1.1/32.

D. UE

After docker compose started, UE can be started by entering the ue container.

1. Enter ue container

   docker exec -it ue bash


2. Start UE

   ./free-ran-ue ue -c uecfg.yaml


3. Check Network Interface

   ifconfig


   Expected output included:

   ueTun0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST>  mtu 1500
       inet 10.60.0.1  netmask 255.255.255.255  destination 10.60.0.1
       inet6 fe80::b1e9:2933:3c64:b981  prefixlen 64  scopeid 0x20<link>
       unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00  txqueuelen 500  (UNSPEC)
       RX packets 0  bytes 0 (0.0 B)
       RX errors 0  dropped 0  overruns 0  frame 0
       TX packets 0  bytes 0 (0.0 B)
       TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0


4. Application

   Now, the whole deployment is finished. Network interface ueTun0 can be used for any application, e.g. ICMP / iperf.
